Handle Data

LogicalFunction

sis08_firesat > sis08_firesat > Logical Architecture > Logical Functions > Root Logical Function > Monitor Fires > Handle Data

No description.

Allocating Component

OBDH

Incoming Internal Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Target	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
Mission TM	Test Data Recording Channel and Storage		PLD MISSION TM OUT	Process Data	Store Payload Mission Data
S/C TC			GS Radio TM	Control GS Radio	Handle Ground Communications
User Radio TM			User Radio TM	Control User Radio	Handle Ground Communications
PLD TM	Test Telemetry Data Reading		PLD TM OUT	Control Payload	Handle Payload
STS TM			FOP 1	Control Mechanisms	Handle STS
ACS TM			ACS TM Out	Control Attitude Subsystem	Handle ACS
EPS TM			EPS TM Out	Control Power Conditioning	Handle EPS

Outgoing Internal Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Target	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
S/C TM			S/C TM Out	Handle Ground Communications	Control GS Radio
User Radio TC			User Radio TC Out	Handle Ground Communications	Control User Radio
PLD Cmd	Test Process Data Commanding		PLD TC Out	Handle Payload	Control Payload
STS Cmd			STS TC Out	Handle STS	Control Mechanisms
ACS TC			AOCS TC OUT	Handle ACS	Control Attitude Subsystem
EPS TC			EPS TC Out	Handle EPS	Control Power Conditioning

Owned diagrams

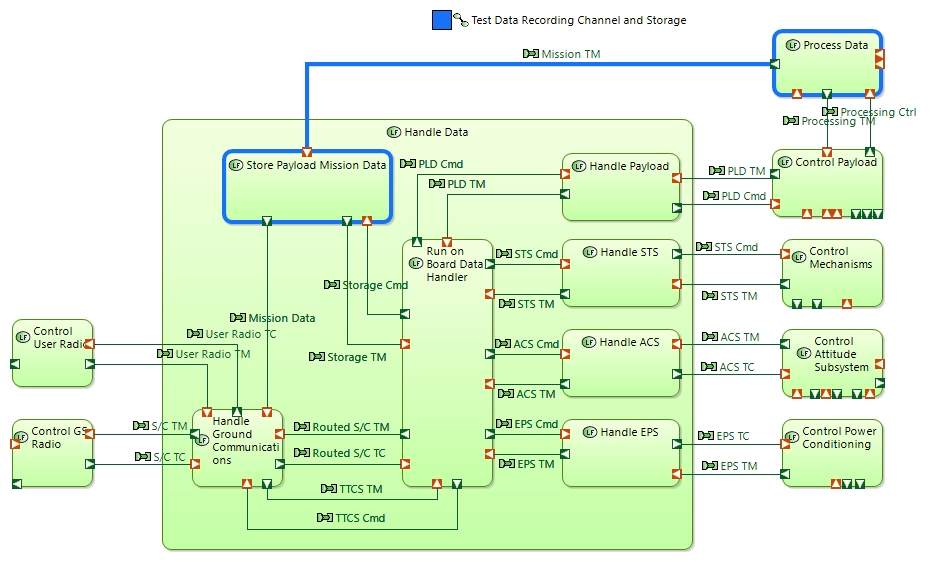

LDFB Handle Data

LDFB Handle Data
