FunctionalChain

Test Telemetry Data Reading

FunctionalChain

sis08_firesat > sis08_firesat > Logical Architecture > Logical Functions > Root Logical Function > Monitor Fires > Identify Forest Fires > Test Telemetry Data Reading

No description.

Requirement Allocations

Outgoing Links:


Target elementRelation type
[SYS-XXX] The FireSat-BR Spacecraft shall be able to record no less than 600 fir...satisfies

Involved functions

FunctionInvolvement Description
LogicalFunction Process Data
LogicalFunction Control Payload
LogicalFunction Handle Payload

Involved functional exchanges

Functional ExchangeInvolvement Description
FunctionalExchange Processing TM
FunctionalExchange PLD TM

Owned diagrams

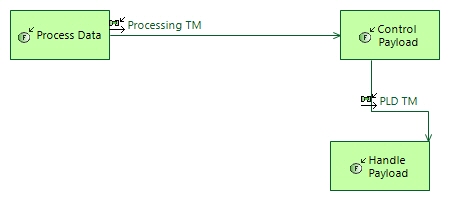

LFCD Test Telemetry Data Reading

LFCD Test Telemetry Data Reading

404c4d5d6dab4f49ac4c26fb6f25c9ee 1da3b001ab1c43dba1fb01aeec2dbefa 8d29a97b93594ea6b1ffe227edf9e3e3 f64bdd0dda1445a899468cfe27fb3559 0adb1f5675ed4a93ad3b5e7e0046cc49

Diagrams displaying "Test Telemetry Data Reading"
