Identify Forest Fires

LogicalFunction

sis08_firesat > sis08_firesat > Logical Architecture > Logical Functions > Root Logical Function > Monitor Fires > Identify Forest Fires

No description.

Allocating Component

• FDS

Incoming Internal Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Target	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
PLD Cmd	Test Process Data Commanding		PLD TC Out	Handle Payload	Control Payload
Fire Smoke			FOP 1	Burn Trees	Scan Smoke			Fire Smoke	Fire Smoke
Fire Thermal Signal			FOP 2	Burn Trees	Scan Thermal			Fire Thermal Signal	Fire Thermal Signal
Fire Flames			FOP 3	Burn Trees	Scan Fire			Fire Flames	Fire Flames

Outgoing Internal Functional Exchanges

Exchange	Involving functional chains	Allocating component Exchanges	Distant Port	Source	Target	Description	Allocated Exchange Items	Realized Functional Exchange	Realizing Functional Exchange
Mission TM	Test Data Recording Channel and Storage		PLD MISSION TM OUT	Process Data	Store Payload Mission Data
PLD TM	Test Telemetry Data Reading		PLD TM OUT	Control Payload	Handle Payload

Realized Elements

• Identify Forest Fires

Realizing Elements

• Identify Forest Fires

Owned diagrams

Diagrams displaying "Identify Forest Fires"

• [LFBD] Monitor Fires
• [LAB] Logical Architecture with Functions

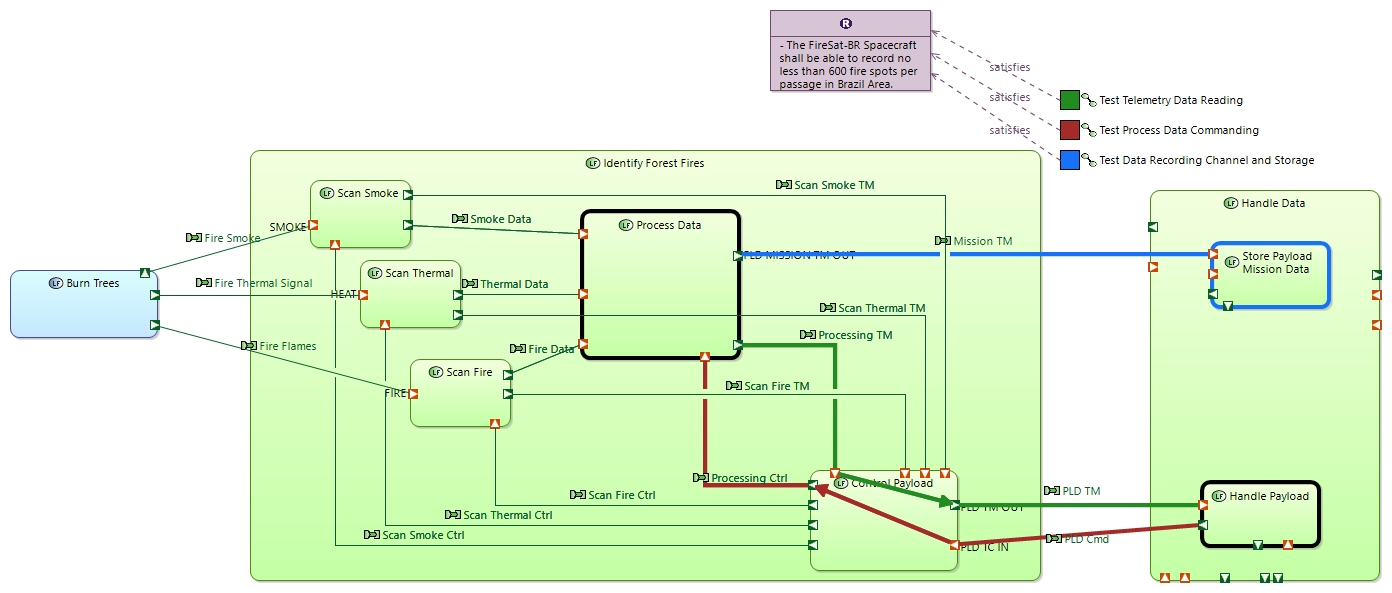

• [LDFB] Identify Forest Fires
• [LFBD] Root Logical Function
• Clone of [LAB] Logical Architecture with Functions & Req
