FunctionalChain

Test Process Data Commanding

FunctionalChain

sis08_firesat > sis08_firesat > Logical Architecture > Logical Functions > Root Logical Function > Monitor Fires > Identify Forest Fires > Test Process Data Commanding

No description.

Requirement Allocations

Outgoing Links:


Target elementRelation type
[SYS-XXX] The FireSat-BR Spacecraft shall be able to record no less than 600 fir...satisfies

Involved functions

FunctionInvolvement Description
LogicalFunction Control Payload
LogicalFunction Process Data
LogicalFunction Handle Payload

Involved functional exchanges

Functional ExchangeInvolvement Description
FunctionalExchange Processing Ctrl
FunctionalExchange PLD Cmd

Owned diagrams

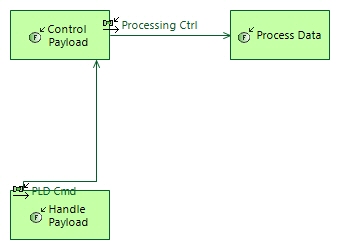

LFCD Test Process Data Commanding

LFCD Test Process Data Commanding

9a9af90a34ac4bb1be7c0af253795ab6 691d40b2460f499294d5d863c37289a2 8d29a97b93594ea6b1ffe227edf9e3e3 0adb1f5675ed4a93ad3b5e7e0046cc49 f64bdd0dda1445a899468cfe27fb3559

Diagrams displaying "Test Process Data Commanding"
