[ES] CapabilityRealization 1

Scenario

sis08_firesat > sis08_firesat > Logical Architecture > Capabilities > CapabilityRealization 1 > [ES] CapabilityRealization 1

No description.

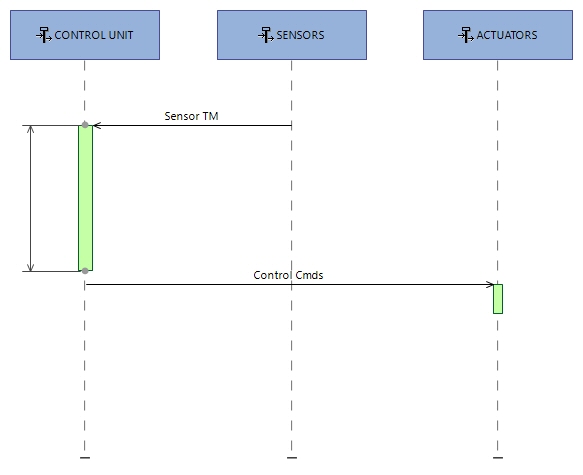

Owned diagrams

Sequence Messages

Invoked Exchange	Source element of the Exchange	Target element of the Exchange	Description of the Sequence Message (and not the one of the invoked exchange)
Sensor TM	SENSORS	CONTROL UNIT	No description
Control Cmds	CONTROL UNIT	ACTUATORS	No description
