Default Region

Region

sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > STS > StateMachine 1 > Default Region

No description.

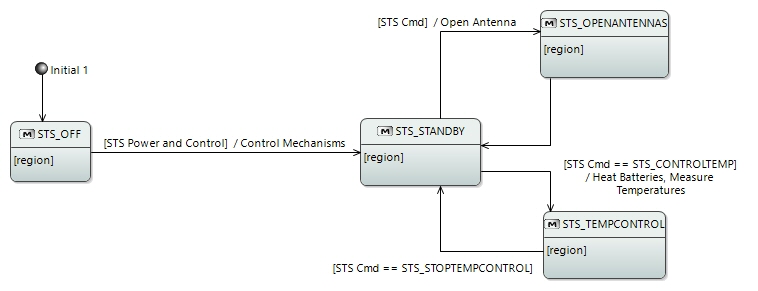

Modes and States

• Initial 1
• STS_OFF
• STS_STANDBY
• STS_OPENANTENNAS
• STS_TEMPCONTROL

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	STS_OFF
[STS Power and Control] / Control Mechanisms,	STS_OFF	STS_STANDBY		Control Mechanisms,
[STS Cmd] / Open Antenna,	STS_STANDBY	STS_OPENANTENNAS		Open Antenna,
	STS_OPENANTENNAS	STS_STANDBY
[STS Cmd == STS_CONTROLTEMP] / (Heat Batteries, Measure Temperatures, )	STS_STANDBY	STS_TEMPCONTROL		(Heat Batteries, Measure Temperatures, )
[STS Cmd == STS_STOPTEMPCONTROL]	STS_TEMPCONTROL	STS_STANDBY
