sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > EPS > StateMachine 1 > Default Region

No description.

Modes and States

• Initial 1
• EPS_OFF
• EPS_CHARGING
• EPS_DISCHARGING
• EPS_GEN_ONLY

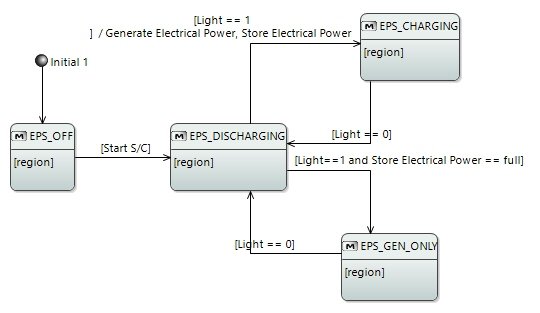

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	EPS_OFF
[Start S/C]	EPS_OFF	EPS_DISCHARGING
[Light == 1 ] / (Generate Electrical Power, Store Electrical Power, )	EPS_DISCHARGING	EPS_CHARGING		(Generate Electrical Power, Store Electrical Power, )
[Light == 0]	EPS_CHARGING	EPS_DISCHARGING
[Light==1 and Store Electrical Power == full]	EPS_DISCHARGING	EPS_GEN_ONLY
[Light == 0]	EPS_GEN_ONLY	EPS_DISCHARGING
