Default Region

Region

sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > FDS > StateMachine 1 > Default Region

No description.

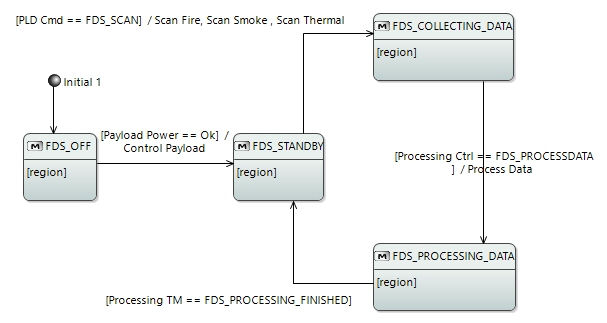

Modes and States

• Initial 1
• FDS_OFF
• FDS_STANDBY
• FDS_COLLECTING_DATA
• FDS_PROCESSING_DATA

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	FDS_OFF
[Payload Power == Ok] / Control Payload,	FDS_OFF	FDS_STANDBY		Control Payload,
[PLD Cmd == FDS_SCAN] / (Scan Fire, Scan Smoke , Scan Thermal, )	FDS_STANDBY	FDS_COLLECTING_DATA		(Scan Fire, Scan Smoke , Scan Thermal, )
[Processing Ctrl == FDS_PROCESSDATA ] / Process Data,	FDS_COLLECTING_DATA	FDS_PROCESSING_DATA		Process Data,
[Processing TM == FDS_PROCESSING_FINISHED]	FDS_PROCESSING_DATA	FDS_STANDBY
