Default Region

Region

sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > OBDH > StateMachine 1 > Default Region

No description.

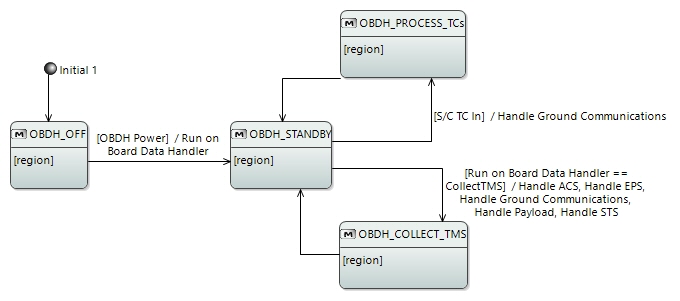

Modes and States

• Initial 1
• OBDH_OFF
• OBDH_STANDBY
• OBDH_COLLECT_TMS
• OBDH_PROCESS_TCs

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	OBDH_OFF
[OBDH Power] / Run on Board Data Handler,	OBDH_OFF	OBDH_STANDBY		Run on Board Data Handler,
[S/C TC In] / Handle Ground Communications,	OBDH_STANDBY	OBDH_PROCESS_TCs		Handle Ground Communications,
	OBDH_PROCESS_TCs	OBDH_STANDBY
[Run on Board Data Handler == CollectTMS] / (Handle ACS, Handle EPS, Handle Ground Communications, Handle Payload, Handle STS, )	OBDH_STANDBY	OBDH_COLLECT_TMS		(Handle ACS, Handle EPS, Handle Ground Communications, Handle Payload, Handle STS, )
	OBDH_COLLECT_TMS	OBDH_STANDBY
