[FS] FunctionalChain 1 3
Scenario
sis08_firesat > sis08_firesat > Logical Architecture > Capabilities > CapabilityRealization 1 > [FS] FunctionalChain 1 3No description.
Owned diagrams

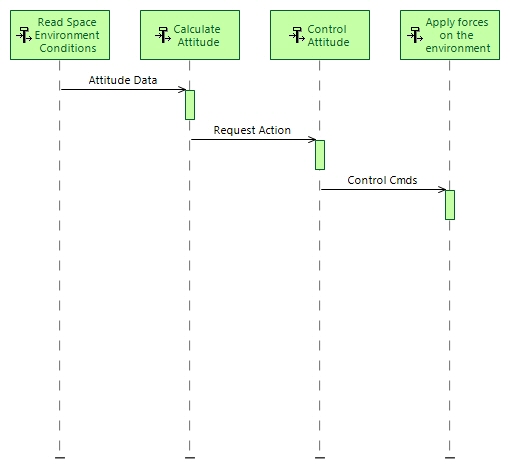

FS FunctionalChain 1 3
Sequence Messages
| Invoked Exchange | Source element of the Exchange | Target element of the Exchange | Description of the Sequence Message (and not the one of the invoked exchange) |
|---|---|---|---|
| Attitude Data | Read Space Environment Conditions | Calculate Attitude | No description |
| Request Action | Calculate Attitude | Control Attitude | No description |
| Control Cmds | Control Attitude | Apply forces on the environment | No description |
