Default Region

Region

sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > TTCS > StateMachine 1 > Default Region

No description.

Modes and States

• Initial 1
• TTCS_OFF
• TTCS_STAND_BY
• TTCS_USERRADIO_BEACON
• TTCS_GROUND_RESPONSE

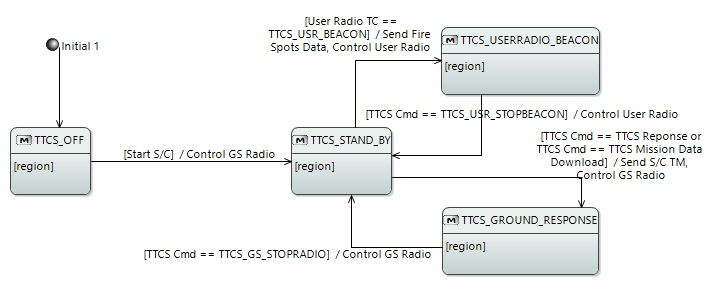

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	TTCS_OFF
[Start S/C] / Control GS Radio,	TTCS_OFF	TTCS_STAND_BY		Control GS Radio,
[User Radio TC == TTCS_USR_BEACON] / (Send Fire Spots Data, Control User Radio, )	TTCS_STAND_BY	TTCS_USERRADIO_BEACON		(Send Fire Spots Data, Control User Radio, )
[TTCS Cmd == TTCS_USR_STOPBEACON] / Control User Radio,	TTCS_USERRADIO_BEACON	TTCS_STAND_BY		Control User Radio,
[TTCS Cmd == TTCS Reponse or TTCS Cmd == TTCS Mission Data Download] / (Send S/C TM, Control GS Radio, )	TTCS_STAND_BY	TTCS_GROUND_RESPONSE		(Send S/C TM, Control GS Radio, )
[TTCS Cmd == TTCS_GS_STOPRADIO] / Control GS Radio,	TTCS_GROUND_RESPONSE	TTCS_STAND_BY		Control GS Radio,
