Default Region

Region

sis08_firesat > sis08_firesat > Logical Architecture > Structure > FireSat-Br Spacecraft > ACS > StateMachine 1 > Default Region

No description.

Modes and States

• Initial 1
• ACS_SAFE
• ACS_OFF
• ACS_ATT_DETERMINATION
• ACS_ATT_MANEUVER

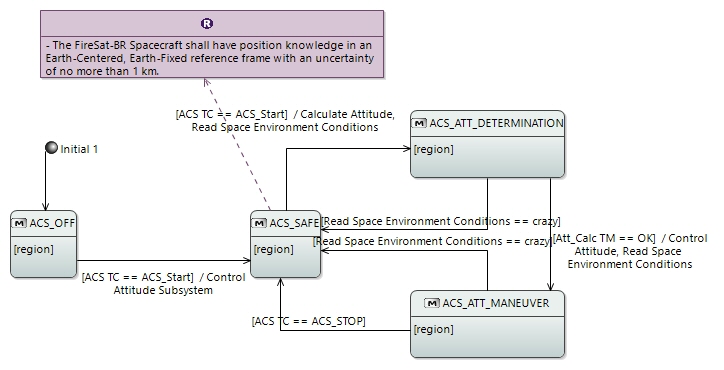

Owned diagrams

Owned Transitions

Transition	Source	Target	Trigger	Effect	Description
	Initial 1	ACS_OFF
[ACS TC == ACS_Start] / Control Attitude Subsystem,	ACS_OFF	ACS_SAFE		Control Attitude Subsystem,
[ACS TC == ACS_Start] / (Calculate Attitude, Read Space Environment Conditions, )	ACS_SAFE	ACS_ATT_DETERMINATION		(Calculate Attitude, Read Space Environment Conditions, )
[Read Space Environment Conditions == crazy]	ACS_ATT_DETERMINATION	ACS_SAFE
[ACS TC == ACS_STOP]	ACS_ATT_MANEUVER	ACS_SAFE
[Att_Calc TM == OK] / (Control Attitude, Read Space Environment Conditions, )	ACS_ATT_DETERMINATION	ACS_ATT_MANEUVER		(Control Attitude, Read Space Environment Conditions, )
[Read Space Environment Conditions == crazy]	ACS_ATT_MANEUVER	ACS_SAFE
